- Place of Origin: China
- Brand Name: Peng Shun Machinery
- Model Number: 300-2400

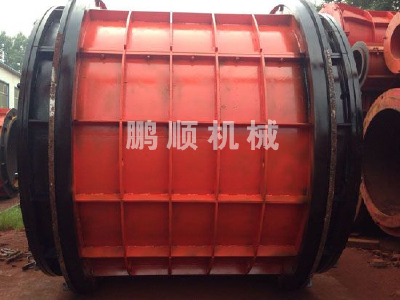

Well pipe centrifugal unit is manufacturing various specifications of circular reinforced concrete well tube and other centrifugal cement products of centrifugal molding equipment, adopts stepless variable speed motor drive, smooth operation, wide speed range, making the products are of good quality and unit frame type and steel plate welded box structure two specifications.
Well pipe centrifuge product features:
Roller by quenching treatment, to strengthen the hardness and abrasion resistance. Base for box-type structure, strong and durable, its top and bottom surfaces of plane processing, ensure the installation precision. Bearing seat and the base surface with card slot between bolt spacing, improve the stability of operation process, card slot design also ensures the bearing replacement of interchangeability in the future. The whole machine low center of gravity, high transmission efficiency, large bearing capacity, axial convenient operation, easy to adjust and control.
Centrifuge speed regulation control cabinet is an international advanced frequency conversion vector control technology and the economic and reliable the perfect combination of Y series three-phase ac motor, with advanced technology and complete protection, the characteristics of easy operation, energy conservation and low consumption.
- Place of Origin: China
- Brand Name: Peng Shun Machinery
- Model Number: 300-2400
The technical index of the centrifuge tube well:
The serial number
project
unit
The types and combinations
Double supporting wheel
Three supporting wheel
1
Roller wheelbase
MM
2000
2000
2
Roller wheelbase
MM
800
800
3
Roller diameter
MM
550
550
4
Roller width
MM
80
80
5
Roller center and the Angle of the steel mold center
(°)
75 ° - 110
6
Maximum length for pipe forming a well
M
8
8
7
Forming the biggest well pipe diameter
Root conical rod end
MM
430
430
Such as diameter rod
500
500
8
The motor power
KM
45
45
9
The main transmission shaft speed range
R/min
60-600 (no)
60-600 (no)
