- Place of Origin: China
- Brand Name: Peng Shun Machinery
- Model Number: GB/T 11836-2009,JC/T 613-2005

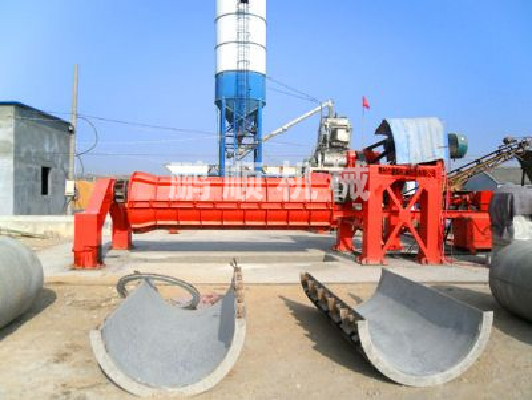

Hanging roller tube machine this machine with sand and gravel, cement cement as raw materials, use of roller and steel roller pressure and centrifugal force produced by the rotation of compacted molding. Roller suspension type cement tube machine is a kind of simple and practical, the most widely used cement pipe machine, with easy operation, convenient maintenance, less wearing parts etc, is mainly used for drainage, sewage, highway culverts, and shaft tube production, more hands. It can produce 1000-4000 - mm long, 200-2000 - mm inner diameter reinforced concrete pipe. 6-8 day/hour, the average efficiency of the machine features simple operation, stable operation, low fault rate and smooth tube inside and outside
- Place of Origin: China
- Brand Name: Peng Shun Machinery
- Model Number: GB/T 11836-2009,JC/T 613-2005
The technical index of the roller suspension type cement tube machine:
The serial number
project
unit
The types and combinations
Double supporting wheel
Three supporting wheel
1
Roller wheelbase
MM
2000
2000
2
Roller wheelbase
MM
800
800
3
Roller diameter
MM
550
550
4
Roller width
MM
80
80
5
Roller center and the Angle of the steel mold center
(°)
75 ° - 110
6
Maximum length for pipe forming a well
M
8
8
7
Forming the biggest well pipe diameter
Root conical rod end
MM
430
430
Such as diameter rod
500
500
8
The motor power
KM
45
45
9
The main transmission shaft speed range
R/min
60-600 (no)
60-600 (no)
